Heetsheet

HeetSheet units are used to provide large area coverage for tanks and vessels. Steam or other heating or cooling media can be used.

The units can be installed or replaced without draining the tank favourably, compared to internal coils.

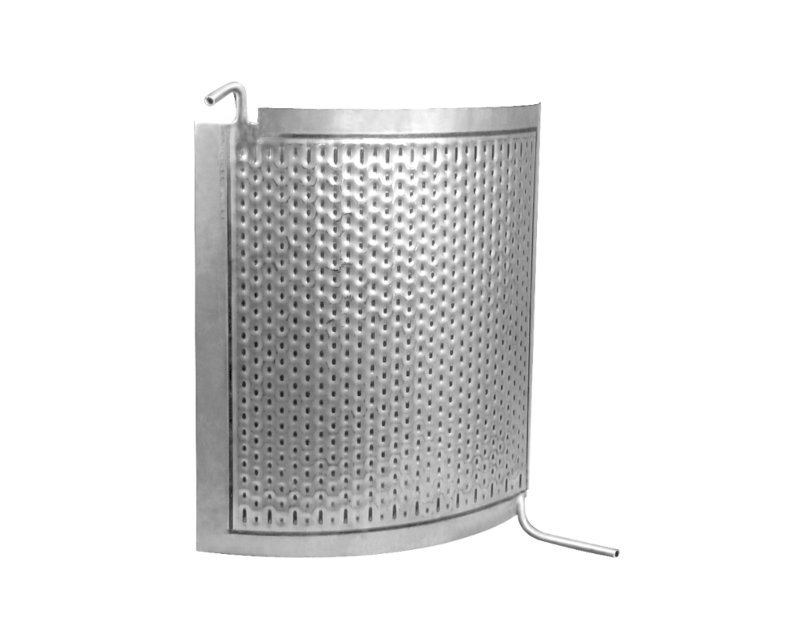

HeetSheet is supplied prerolled to match the radius of the tank.

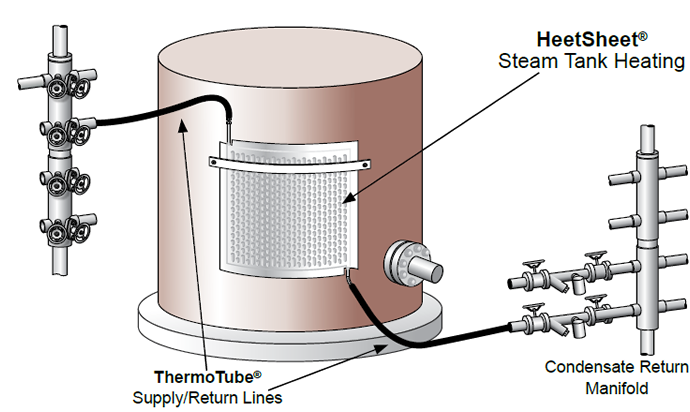

Customer supplied fittings are used to connect the inlet and outlet tubes to ThermoTube preinsulated supply and return tubing.

HeetSheet internal volume is small, thus units are not required to be certified under Pressure Equipment Directives or ASME Section VIII Div 1 Boiler and
Pressure Vessel Code. Annual AIA inspections are not required.


Advantages

• Known and predictable heat transfer coefficients.
• High heat transfer rates provided by non-hardening heat transfer compound.
• Requires only 1/2 to 1/3 the heating surface area of plate-type coils such as pillow or dimple plates.
• Light weight units with factory applied heat transfer compound assure quick installation.
• Used for both heating or cooling applications.
• No cross contamination of heating media and tank/vessel contents.
