Parallel trace heating cable consists of two parallel conductors (phase, neutral) with a conducting material in between. The conducting material produces even heating power (Watts/m) over the entire length of the cable.
The advantage of parallel heating cables is that they can be cut to any length with the termination being at one end of the cable and is easy to terminate.
For safety reasons it is not recommended to exceed the design wattage.
If used in a more hazardous environment such as the chemical or petrochemical industry, the cables can be lagged with a unique, chemically resistant outer fluorpolymer jacket.
What are Self-Regulating or Power Limiting Heating Cables?
Where resistance of the material increases as the operating temperature rises, a reduction of heating power occurs.
These are termed "self regulating" or power limiting trace heating cables.
Excellent for metallic or non-metallic piping and tanks, our self-regulating heating cables allow for ease of design & installation with applications ranging from freeze protection to process temperature maintenance to foundation heating.
High performance power-limiting heating cables are designed specifically for process temperature maintenance or freeze protection where high temperature maintenance or high temperature exposure is required.
What are Parallel Constant Watt Heat Tracing Cables?
Parallel constant watt heating cables include a continuous series of short, independent heating circuits. Power output is relatively unchanged by variations in circuit length up to several hundred metres.
These cables are designed specifically for freeze protection or process temperature maintenance of pipes, tanks and equipment.
Thermon BSX - up to 65°C
Self-Regulating Heating Cable
- Max exposure temperature Power OFF: 85ºC
- Power options: 9 | 15 | 25 | 32 W/m @ 10 ºC
- Voltage Range: 100-277 Vac
- T-Rating: T5 | T6
*freeze protection *low process temperature maintenance *no steam clean
Thermon RSX - up to 65°C
Self-Regulating Heating Cable
- Max exposure temperature Power OFF: 85ºC
- Power options: 45 W/m @ 10 ºC
- Voltage Range 100-277 Vac
- T-Rating: T4 | T6
*freeze protection *low process temperature maintenance *anti icing *no steam clean *foundation heating
Thermon TEK - up to 101°C
Constant Watt Heating Cable
- Max exposure temperature Power OFF: 250ºC
- Resistance options: 0.003478 - 0.01492 Ohms/m @ 20°C
- Voltage Range 100-750 Vac
- T-Rating: T2 | T6
*long pipelines *medium process temperature maintenance *steam clean/ purge
Thermon KSX - up to 121°C
Self-Regulating Heating Cable
- Max exposure temperature Power OFF: 121ºC
- Power options: 15, 32, 48, 64 W/m @ 10°C
- Voltage Range 100-277 Vac
- T-Rating: T3 | T6
*freeze protection *medium process temperature maintenance *no steam clean
Thermon HTSX - up to 150°C
Self-Regulating Heating Cable
- Max exposure temperature Power OFF: 250ºC
- Power options: 10, 20, 24, 33, 39, 40, 49, 57, 66 W/m @ 10°C (available for 380-480 Vac cable)
- Voltage Range 100-277 Vac & 380-480 Vac
- T-Rating: T3 | T6
*freeze protection *medium process temperature maintenance *steam clean/ purge

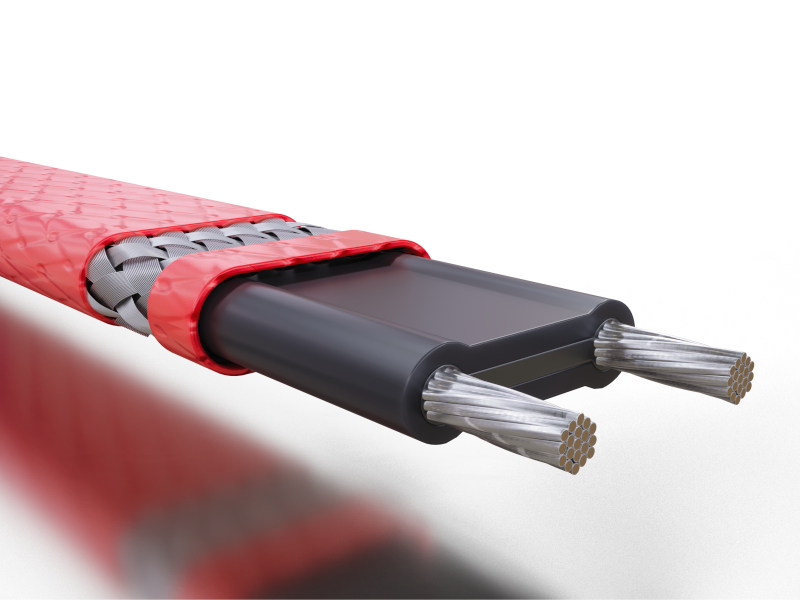

Thermon VSX-HT - up to 200°C
Self-Regulating Heating Cable
- Max exposure temperature Power OFF: 250ºC
- Power options: 15, 32, 48, 64 W/m @ 10°C
- Voltage Range 100-277 Vac
- T-Rating: T2 | T6
*freeze protection *medium - high process temperature maintenance *steam clean/ purge
Thermon HTEK - up to 204°C
Constant Watt Heating Cable
- Max exposure temperature Power OFF: 260ºC
- Resistance options: 0.005945 - 0.01905 Ohms/m @ 20°C
- Voltage Range 100-750 Vac
- T-Rating: T2 | T6
*long pipelines *medium - high process temperature maintenance *steam clean/ purge
Thermon HPT - up to 215°C
Power Limiting Heating Cable
- Max exposure temperature Power OFF: 260ºC
- Power options: 15, 30, 45, 60 W/m @ 10°C
- Voltage Range 100-277
- T-Rating: T2 | T6
*medium - high process temperature maintenance *steam clean/ purge
