All electrical heat tracing systems need temperature control. For energy-saving reasons self-regulating heating cables should also feature temperature regulation.
Controlling a trace heating circuit can be as simple as a mechanical thermostat. Frequently, more sophisticated control and monitoring requirements are necessary.
We offer a wide range of measuring and regulating technology which meets the ever increasing requirements on quality, accuracy, energy saving and safety.
The features of our temperature control units and thermostats are a high controlling quality, fast commissioning, user-friendliness and versatility.
Thermon Terminator ZT
Pipe Sensing Mechanical Thermostat
- Max maintenance temperature: 500ºC
- Control Type: Pipe Sensing or Ambient
- 4 temperature control & bulb exposure temperature ranges
- Switch rating: 25A
- Pipe or wall mount
- Pipe mount Expeditor
- Certified for Ex classified areas
Thermon TraceNet ECM
Electronic Heat Tracing Control Module
- Max maintenance temperature: 500ºC
- Control Type: Pipe Sensing or Ambient
- Input Sensors: Control + Limiter
- Switch rating: Up to 30A
- Communication: RS485/ Modbus RTU
- Alarm: 1 x relay
- Pipe or wall mount
- Pipe mount Expeditor
- Certified for Ex classified areas
Download TraceNet ECM datasheet
Thermon EXO TOUCH
Electronic Heat Tracing Control Module
- Max maintenance temperature: 125ºC
- Display: 4.3" LCD touchscreen
- Control Type: Pipe Sensing and Ambient
- Input Sensors: Control + Limiter
- Switch rating: 25A
- Alarm: 1 x relay & Audible
- Pipe or wall mount (bracket required)
- Certified for Ordinary Locations
Thermon Genesis Duo
Dual Point Electronic Heat Tracing Control Module
- Max maintenance temperature: 500ºC
- Display: 4.3" LCD touchscreen
- Control Circuits: 2
- Control Type: Pipe Sensing and Ambient
- Input Sensors: Control + Limiter
- Switch rating: Up to 30A
- Communication: RS485/ Modbus RTU
- Alarm: 2x relay
- Pipe or wall mount
- Pipe mount Expeditor
- Certified for Ex classified areas
Download Genesis Duo datasheet

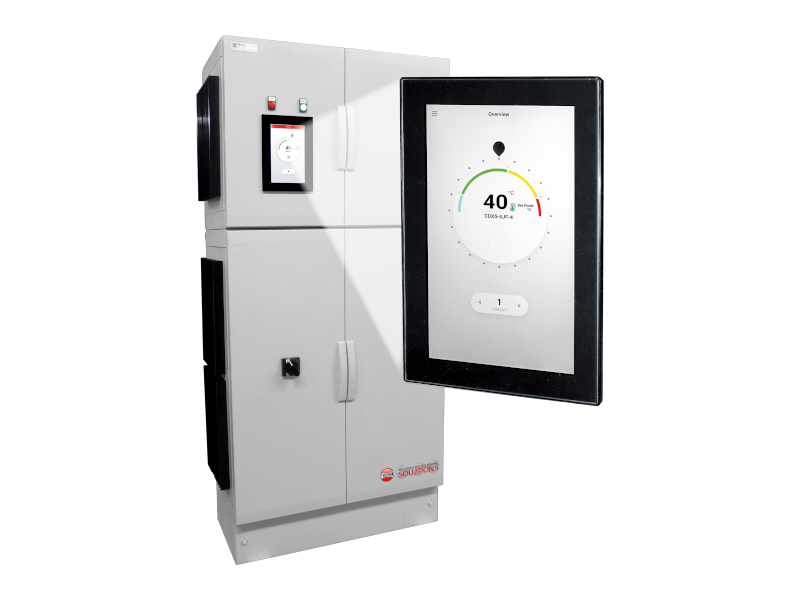

Thermon Genesis Controller
Multi Point Electronic Heat Tracing Control and Logging Module
- Max maintenance temperature: 500ºC
- Display: 10.6’’ x 5.5" LCD touchscreen
- Menus: Pipe Iso, Operating, logging, circuit dashboard
- Control Circuits: 18-72
- Control Type: Pipe Sensing and Ambient
- Input Sensors: Control + Limiter
- Switch rating: 30A
- Communication:
- Ethernet
- Wireless: Ethernet to Wireless Genesis Bridge
- Alarm: 1 per circuit
- Panel mount
Download Genesis Controller datasheet
